160W Ballastless Mercury Lamp Replacement LED / “ViewLamp”
Light color:
5,700K
Lamp base:
E26
Luminous flux:
1,790ml
Góc chiếu sáng:
40 độ
IP Rating:
IP65
Wattage:
13W
Light color:
2,700K
Lamp base:
E26
Luminous flux:
1,610ml
Góc chiếu sáng:
40 độ
IP Rating:
IP65
Wattage:
13W
Light color:
5,700K
Lamp base:
E26
Luminous flux:
1,905ml
Góc chiếu sáng:
120 độ
IP Rating:
IP65
Wattage:
13W
Light color:
2,700K
Lamp base:
E26
Luminous flux:
1,790ml
Góc chiếu sáng:
120độ
IP Rating:
IP65
Wattage:
13W
300W Ballastless Mercury Lamp Replacement LED / “ViewLamp”
Light color:
5,700K
Lamp base:
E39
Luminous flux:
4,110lm
Góc chiếu sáng:
40 độ
IP Rating:
IP65
Wattage:
32W
Light color:
2,700K
Lamp base:
E39
Luminous flux:
3,700lm
Góc chiếu sáng:
40 độ
IP Rating:
IP65
Wattage:
32W
Light color:
5,700K
Lamp base:
E39
Luminous flux:
4,650lm
Góc chiếu sáng:
120độ
IP Rating:
IP65
Wattage:
32W
Light color:
2,700K
Lamp base:
E39
Luminous flux:
4,185lm
Góc chiếu sáng:
120độ
IP Rating:
IP65
Wattage:
32W
Features
Ballast-free mercury lamp LED “ViewLamp”
Two brightness options: 160W type / 300W type
Both 160W ballast-free mercury lamp type (E26 base) and 300W ballast-free mercury lamp type (E39 base) are available.
You can select the suitable model to match existing fixtures, or for new installations, choose according to the signboard size.

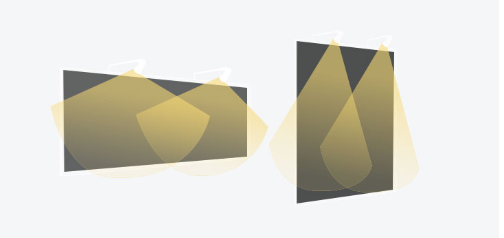

Two light distribution options: vertical and horizontal

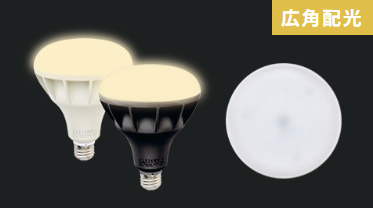

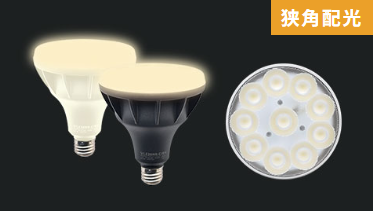

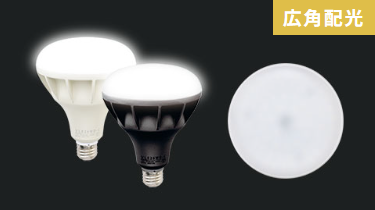

ViewLamp is available in two beam distribution types: a wide-angle beam for
horizontal signboards and a narrow-angle beam for vertical signboards.
You can choose the optimal light distribution according to the signboard to be installed.

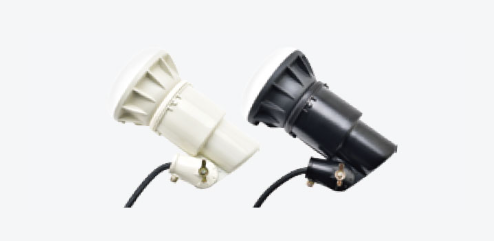

All models available in two colors: White / Black
Previously, only some of the best-selling models were available in black.
With this model update, all models are now available in two color options: white and black.

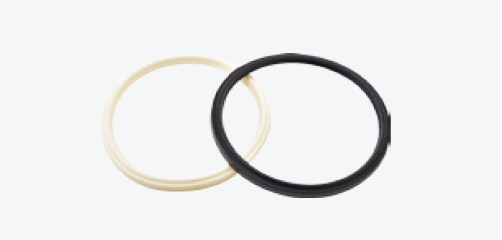

Supplied with dedicated waterproof gasket
ViewLamp is designed with the same joint dimensions as conventional ballast-free mercury lamps,
allowing it to be used as-is with the gasket supplied with a new holder.
When used with an existing holder, the gasket rubber may have hardened over time; therefore,
it is recommended to use the waterproof gasket supplied with ViewLamp to ensure proper sealing and waterproof performance.
Certified and passed various tests
As this product is intended for use on high-mounted signboards,
it complies with and has passed the following certifications and tests:
Electrical Appliance and Material Safety Law (PSE), IP65 (waterproof and dustproof test),
vibration resistance test (IEC 60068-2-6), and salt spray test (ISO 9227).
Compatible with lamp holders from various manufacturers
[E26 base]
Matsushita (YA5882X, YA5259XX), Iwasaki (K0 type),
Toshiba (BK-207 / IK207), Mitsubishi (HL201), TOKI (BA30XX),[E39 base]
Matsushita (LL type YA5884X), Iwasaki (S0 type), Toshiba (IK507), Mitsubishi (HL501)
Note: When used with a hood, installation is limited to downward orientation only.
Specifications

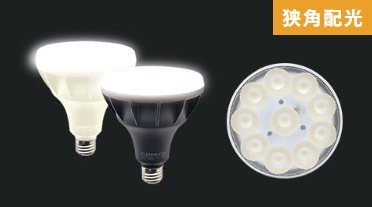

Specifications – VLE26NR Series (Narrow Beam)
| Item | Daylight | Warm White |
|---|---|---|
| Model | VLE26NR-C / VLE26NR-C/BK |
VLE26NR-W / VLE26NR-W/BK |
| Light color | Daylight 5,700K | Warm white 2,700K |
| Beam angle | 40° | 40° |
| Total luminous flux | 1,790 lm | 1,610 lm |
| Power consumption | 13 W | 13 W |
| Input voltage | AC 100V – AC 240V (±10%) | AC 100V – AC 240V (±10%) |
| Protection rating | IP65 | IP65 |
| Warranty period | 2 years from shipping date | 2 years from shipping date |
Specifications – VLE39WD Series (Wide Beam)
| Item | Daylight | Warm White |
|---|---|---|
| Model | VLE39WD-C / VLE39WD-C/BK | VLE39WD-W / VLE39WD-W/BK |
| Light color | Daylight 5,700K | Warm white 2,700K |
| Beam angle | 120° | 120° |
| Total luminous flux | 4,650 lm | 4,185 lm |
| Power consumption | 32 W | 32 W |
| Input voltage | AC 100V – AC 240V (±10%) | AC 100V – AC 240V (±10%) |
| Protection rating | IP65 | IP65 |
| Warranty period | 2 years from shipping date | 2 years from shipping date |
Specifications – VLE39NR Series (Narrow Beam)
| Item | Daylight | Warm White |
|---|---|---|
| Model | VLE39NR-C / VLE39NR-C/BK |
VLE39NR-W / VLE39NR-W/BK |
| Light color | Daylight 5,700K | Warm white 2,700K |
| Beam angle | 40° | 40° |
| Total luminous flux | 4,110 lm | 3,700 lm |
| Power consumption | 32 W | 32 W |
| Input voltage | AC 100V – AC 240V (±10%) | AC 100V – AC 240V (±10%) |
| Protection rating | IP65 | IP65 |
| Warranty period | 2 years from shipping date | 2 years from shipping date |
