LED Floodlight for Large Signs “ViewSignon SV / ViewSignon PV”

Product Introduction

LED Floodlight for Large Signs “ViewSignon SV / ViewSignon PV”

Three years in the making, this LED floodlight is designed specifically for large signs.
Thanks to its proprietary polarized lens, the SV type covers signs up to 6 m in height,
while the PV type covers signs up to 4 m in width.
It supports installation via 50 mm square pipe insertion as well as bracket bolt mounting.
ViewSignon dramatically reduces the number of lights required for large signage.

Product

Extra-large signboard floodlight

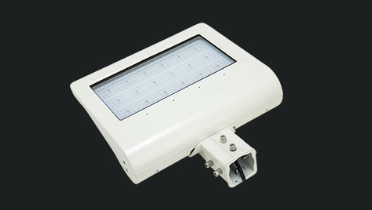

VS24-SV-KW

VS24-SV-KW

Light color: 5,000K
Lamp base: -
Luminous flux: 26,000lm
Góc chiếu sáng: 25° × 60°
IP Rating: ip66
Wattage: 215W
Contact Now View quote

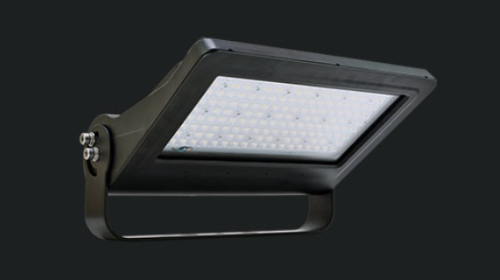

VS240 SV-UB

VS240 SV-UB

Light color: 5,000K
Lamp base: -
Luminous flux: 26,000lm
Góc chiếu sáng: 25° × 60°
IP Rating: ip66
Wattage: 215W
Contact Now View quote
VS240PV-KW

VS240PV-KW

Light color: 5,000K
Lamp base: -
Luminous flux: 27,800lm
Góc chiếu sáng: 65° × 120°
IP Rating: ip66
Wattage: 215W
Contact Now View quote
VS240PV-UB

VS240PV-UB

Light color: 5,000K
Lamp base: -
Luminous flux: 27,800lm
Góc chiếu sáng: 65° × 120°
IP Rating: ip66
Contact Now View quote

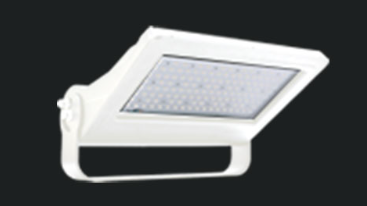

VS240PV-UM

VS240PV-UM

Light color: 5,000K
Lamp base: -
Luminous flux: 27,800lm
Góc chiếu sáng: 65° × 120°
IP Rating: ip66
Wattage: 215W
Contact Now View quote

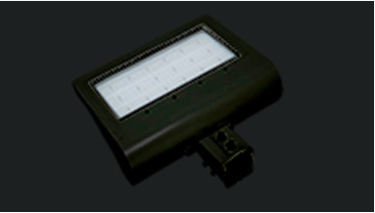

VS240SV-KB

VS240SV-KB

Light color: 5,000K
Lamp base: -
Luminous flux: 26,000lm
Góc chiếu sáng: 25° × 60°
IP Rating: ip66
Wattage: 215W
Contact Now View quote

Features

LED Floodlight for Large Signs – ViewSignon Series

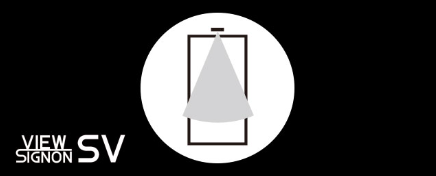

Ideal for large signboards with a long height (H dimension


The uniquely designed polarized lens provides
uniform illumination in the vertical direction.

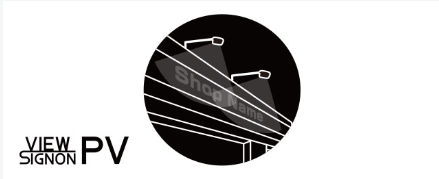

Ideal for horizontal tower signs and large façades.
The 65° × 120° polarized lens delivers super-wide light distribution

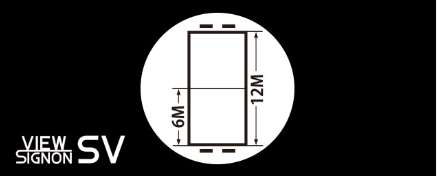

Supported Sign Height (H-dimension)
Single-side installation: up to H6 m
Double-side installation: up to H12 m

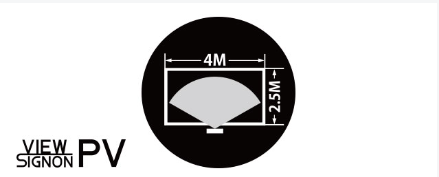

For sign sizes up to W: 4 m / H: 2.5 m,
Bright illumination with just a single unit! Average illuminance: 933 lx.

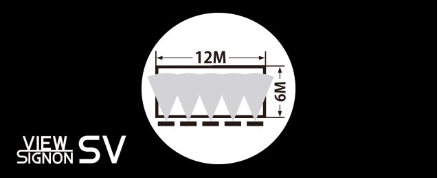

Covers an extra-large sign of W 12 m / H 6 m with five luminaires.
Also ideal for urban tower signs. Average illuminance: 1,119 lx.

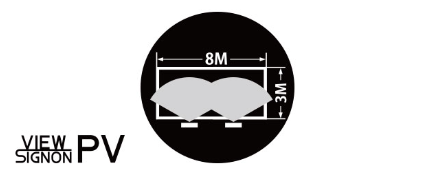

Covers a large sign (W: 8 m / H: 3 m) with just two units.
Reduces the number of units required. Average illuminance: 903 lx.

Achieves industry-leading lightweight design for
700 W mercury lamps / 400 W metal halide lamps.
Weighing only 7.2 kg, it is designed for
easy installation and enhanced safety.

Specifications

Model NFL20-5K NFL20-6K
Light color Daylight white 5,000K Daylight color 6,000K
Total luminous flux 1,140lm
Power consumption 7.5W
Lnput voltage AC100V to AC240V
Light distribution angle 140°
Protection class For indoor use only house
Warranty period 3 years from date of delivery



Model NFL 40-5K NFL40-6K NFL 40H-5K NFL40H-6K
Light color Daylight white 5,000K Daylight color 6,000K Daylight white 5,000K Daylight color 6,000K
Total luminous flux 2.260lm 3.330lm
Power Consumption 15W 22W
Input voltage AC100V to AC240V
Light distribution angle 140°
Protection layer For indoor use only
Warranty period 3 years from date of delivery
